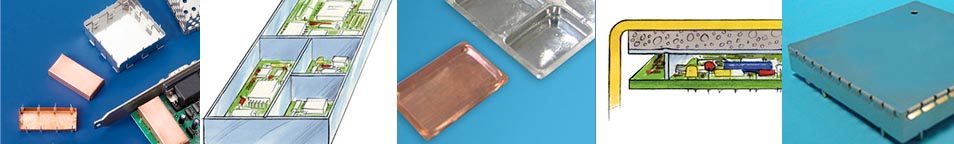

Clip-on shielding system夾式屏蔽系統 1500 serie系列	Fixed serie固定系列 1600 serie系列	Drawn board level shields拉伸式板級屏蔽 1700 serie系列

Properties特性 Less space taken up on the board。在板上占用很少的空間。 Excellent solution for series of 1 - 5,000 pieces。卓越的解決方法用于1-5000只的系列。 For heavy duty applications the lid can also be fixed by extra soldering between the lid and some of the pins。對于重載應用，通過在蓋子和一些插腳之間進行外加的焊接蓋子也能被固定。	Properties特性 Can be manufactured by our CNC production system。通過我們的CNC生產系統能夠進行制作。 Suitable for series of 100 -100,000 pieces 適合用于100-100，,00只的系列 Made according to your drawing 根據你的圖紙制作。	Properties特性 Designed for seamless corners。設計用于無縫角。 Ultra-high frequency shielding超高頻率屏蔽 Available in heights of 0.5 to 8 mm and sizes of 6 to 80 mm 可獲得的高度為：0.5到8 mm。尺寸：6到80 mm Can be combined with ventilation 能與通風設備結合
Compartment shield分隔屏蔽 1800 serie	High volume production高容量生產

Properties特性 From 1.000-250.000+ items Excellent EMI shielding	Properties特性 From 1,000 to 250,000+ items Excellent EMI shielding

Mounting clips and pins for the PCB shields 用于PCB屏蔽的安裝夾子和插腳

Small pin小引腳 Type P	Medium clips中等夾子 Type MC	Large clips大的夾子 Type LC

Properties特性 With a tinned pin帶有一個鍍錫的引腳 Can be soldered into the PCB at any available place around the screening cover能在任何可能的地方將屏蔽蓋四周焊接進PCB Big clamping range大的夾鉗范圍 Less accurate positioning is needed很少精確位置要求	Properties特性 The medium clip takes up 40% less space than the large clip 中等夾子比大的夾子占用40%少的空間。 Thickness of the screening cover can be 0.12 to 0.23 mm。屏蔽蓋子的厚度：0.12 到 0.23 mm。 To mount on to the surface of the PCB (SMT)。裝配在PCB(SMT)地表面上， fast solution for assembling RFI/EMI shields to PCBs。快速安裝RFI/EMI屏蔽到PCB板上。 Need for through holes and post reflow operations on the PCB This clip can be supplied on reels of 5000 pieces 這個夾子的供應是以卷的形式，5000只。	Properties特性 Same as the medium clip, exept that thicker screening covers can be used。與中等夾子相同，除了使用了更厚的屏蔽蓋子。 Screening covers can be placed in the clip up to 0.3 mm thickness。屏蔽蓋子能被放置在夾子里，可達0.3mm厚。 This clip can be supplied on reels of 1900 pieces 這個夾子的供應是以卷的形式，1900只。
